Product Details:
Payment & Shipping Terms:
|
| Name: | Woodworking Edge Bander Edge Banding Machine | Voltage: | 380V Or Customer Made |
|---|---|---|---|
| Total Power: | 28.6kw | Dimensions: | 680*97*150cm |
| High Light: | J C Type Woodworking Edge Bander,380V Woodworking Edge Bander,0.8mpa Automatic Woodworking Edge Bander |
||

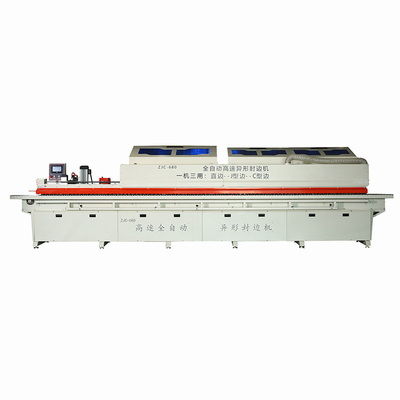

J C Type Automatic Woodworking Edge Bander Edge Banding Machine
One machine for three purposes: J-type, C-type, straight edge banding
2.2kw high-torque industrial machinery conveying motor.
Aluminum alloy pressure beam + 10mm*2 steel plate.
High-power milling motor with higher efficiency.
| Name | J C Type Automatic Woodworking Edge Bander Edge Banding Machine | ||||
| Voltage | 380V | Lifting motor | 0.25kw | Hot air gun | 2kw*2 |
| Total power | 28.6kw | Milling motor | 7.5kw | Glue pot heating | 1.2kw |
| Weight | 2060kg | Polishing Motor | 0.37kw*4 | Glue pot capacity | 2000ml |
| Dimensions | 680*97*150cm | Trimming motor | 2.2kw*2 | Sheet thickness | 18-25mm(JC) |
| Barometric pressure | 0.6-0.8mpa | End cutting motor | 0.37kw*2 | Sheet width | ≥100mm |
| Vacuum outlet | φ100mm | Conveying motor | 2.2kw | Sheet length | ≥250mm |
PLC control, touch screen operation, one-key switching of different types of edge banding, high stability.
The fuselage is made of high-strength steel, sandblasted after welding, with high strength and no deformation.
2.2kw high-power and high-torque industrial motor, strong transmission power.
7.5kw+3.7kw Milling motor, more power.
The pressing module adopts CNC milling, pneumatic operation, and more firm pressing.
4 polishing motors, 150mm diameter polishing wheel, larger polishing width, reducing replacement frequency.
