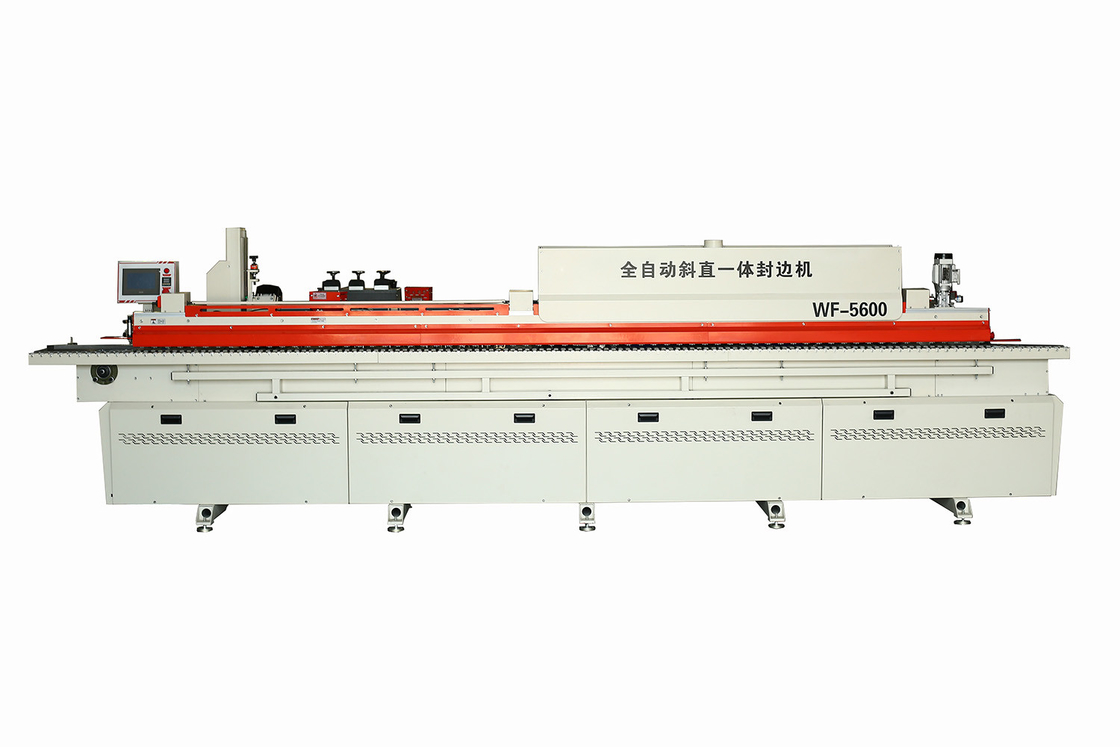

Automatic Woodworking Edge Bander Beveled Edge And Straight Edge Dual-Purpose Edge Banding Machine
Fully automatic woodworking edge bander beveled edge and straight edge dual-purpose edge banding machine
The machine has a 45-degree sawing unit, which crushes and cuts the beveled edge outside the reserved straight edge; adopts the principle of one-time straight edge and beveled edge coating at the same time to achieve a perfect glue coating effect, and assembles two sets of pressure wheels to match the beveled edge and the beveled edge. Straight edge for pressing; Use edge band slotting to slot and form the parts that need to be combined to achieve clear edge angles on the edge banding surface; It has a hot air auxiliary unit, which can soften the edge band and heat the rubber surface twice to make the effect more perfect; The machine also has the functions of end cutting, fine trimming, scraping and polishing, which can achieve perfect beveled edge banding effect at one time. It mainly produces panel-type furniture edge-banding workpieces. It is suitable for melamine boards, medium-density boards, and plywood (plywood). Various types of edge banding can be used, including: PVC/ABS/acrylic (straight edge sealing) and other edge banding materials.
|automatic woodworking edge bander beveled edge and straight edge dual-purpose edge banding machine
|Edge banding sheet thickness
|18-25mm(Sloping straight edge) 18-50mm(Straight edge)
|Edge strip thickness
|Glue pot heating
|Oven lamp heating
|End cutting motor
2.2kw Industrial motor, 40 bearings, more powerful transmission power.
The aluminum alloy pressure beam is raised and lowered by a motor, and the height can be adjusted automatically.
Beveled edge milling motor, powerful power, PLC control, one-button lifting, easy tool change.
6+6 Chrome-plated pressing rollers, pneumatic pressure adjustment, can realize one-key switching of different types of modes.
The end cutting device adopts double high-speed motors + saw blades, which is fast and stable.
