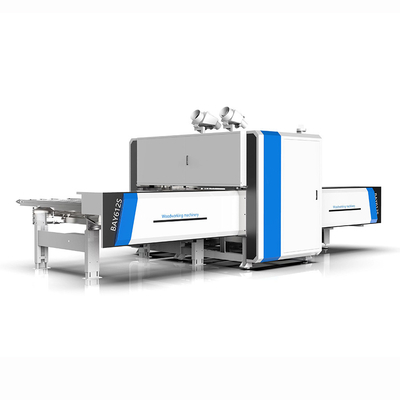

Double Drilling Box Woodworking CNC Machine Automatic Six Sides 18000RPM

Large Image : Double Drilling Box Woodworking CNC Machine Automatic Six Sides 18000RPM

Product Details:

Place of Origin:	China
Brand Name:	ZDS
Model Number:	612S

Payment & Shipping Terms:

Minimum Order Quantity:	1sets
Price:	negotiate
Packaging Details:	Carton packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100sets/months

Contact Now

Detailed Product Description

Name:	Woodworking Double Drilling Box Automatic Six Sides CNC Drilling Machine	Voltage:	380V/220V Or Customer Made
Power(w):	19.2KW	Condition:	New
Warranty:	1 Year	Cnc Or Not:	CNC
Weight:	3000KG	Spindle:	6kw Italy HSD Air Cooling Spindle
Spindle Speed:	0-18000RPM	Application:	Woodworking,woodworking Cnc Router,woodworking Machine Cnc,Wood Working
High Light:	Double Drilling Box Woodworking CNC Machine , Automatic Woodworking CNC Drilling Machine , 18000RPM Woodworking CNC Drilling Machine

Woodworking Double Drilling Box Automatic Six Sides CNC Drilling Machine

Advantages of woodworking six sides CNC drilling machines

1 Screw drive, higher precision, the error is within 0.05-0.1mm, and the cumulative tolerance is within ±0.2mm.

2 Automatically detect the length of the plate to prevent misalignment.

3 Depending on the needs of your site, choose front or rear discharge.

4 The unique clamping device can reduce the minimum range of the processed plate to within 10mm.

5 Taiwan LNC control system can realize remote update of database.

6 Through HHM software control and online production with other equipment, unmanned intelligent production can be realized.


			Processing Size Range
			Maximum width
			1200mm

			Minimum width
			50mm

			Maximum length
			5000mm

			Minimum length
			120mm

			Maximum thickness
			48mm

			Working Stoke & Max.Position Speed
			X axis
			5000mm & 130m/min

			Y axis
			1680mm & 55m/min

			Z axis
			90mm & 30m/min

			U axis
			5000mm & 130m/min

			V axis
			1200mm & 80m/min

			W axis
			100mm & 30m/min

			A axis
			1260mm & 30m/min

			TOP Drilling unit:
			Vertical spindles
			12pcs

			Horizontal Spindle
			8pcs

			Drilling box motor speed
			3400rmp

			Router Motor power
			3.5kw speed18000rpm

			Bottom Drilling unit:
			Vertical spindles
			9pcs

			Horizontal Spindle
			0pcs

			Drilling box motor speed
			3400rmp

			Router Motor power
			3.5kw speed 18000rpm

			Other Data:
			Working table height
			960mm

			Total Power
			19.2kw

			Voltage
			380V/50Hz

			Working air pressure
			0.6-0.8Mpa

			Weight
			3500kg

			Overall size
			5800*2840*2200mm

Double Drilling Box Woodworking CNC Machine Automatic Six Sides 18000RPM 0

It adopts Windows man-machine interface, Taiwan LNC control system, CAD imports drilling data, and automatically loads graphics files to generate processing programs, which is easy to operate.

Taiwan Protean drill bit package, international standard, after three-coordinate detection, high precision.

Double gripper clamping and feeding, according to the computer drilling program, the board feeding and positioning are automatically controlled to improve the accuracy.

Flexible discharge method, match with automatic lifting unloading table A variety of unloading options to facilitate automatic connection.
