380V 3.7kw Laser CNC Side Hole Drilling Machine With Dual Spindle

380V 3.7kw Laser CNC Side Hole Drilling Machine With Dual Spindle
380V 3.7kw Laser CNC Side Hole Drilling Machine With Dual Spindle 380V 3.7kw Laser CNC Side Hole Drilling Machine With Dual Spindle 380V 3.7kw Laser CNC Side Hole Drilling Machine With Dual Spindle

Large Image :  380V 3.7kw Laser CNC Side Hole Drilling Machine With Dual Spindle

Product Details:
Place of Origin: China
Brand Name: ZDS
Model Number: ZDS-3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiate
Packaging Details: Plastic film winding
Delivery Time: 15 working days after deposit received
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 30 units/ month

380V 3.7kw Laser CNC Side Hole Drilling Machine With Dual Spindle

Description
Name: Laser Positioning CNC Side Hole Drilling Machine With Dual Spindle Drilling Depth: 0-35mm
Laser Probes: American Bonner/Senzapat Long Or Short Boards: Both
After-sales Service Provided: Online Voltage: 380V
Power(w): 3.7kw Weight: 850kg
Warranty: One Year Type: Wood Drilling Mahine
Application: Woodworking,drilling,furniture Manufacturing Keyword: CNC Wood Drilling Machine, Drilling Cnc Machine
High Light:

380V CNC Side Hole Drilling Machine

,

3.7kw Laser Hole Drilling Machine

,

ZDS Double Spindle Drilling Machine

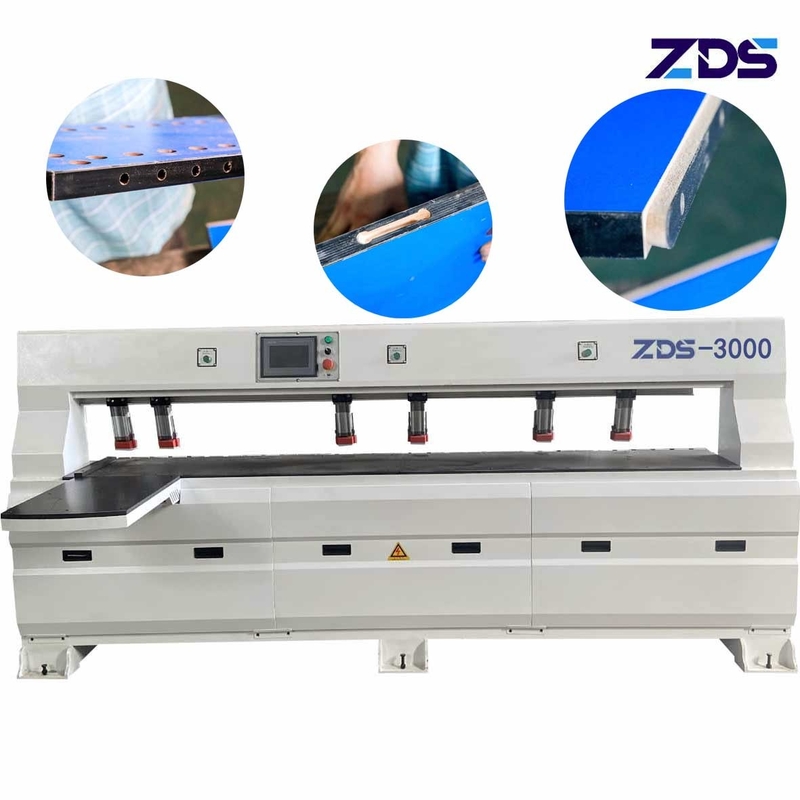

Laser Positioning CNC Side Hole Drilling Machine With Dual Spindle



The machine tool of CNC side hole drilling machine adopts trapezoidal steel pipe design, horizontal structure, and the machine runs more smoothly; dual-spindle motor, automatic laser positioning, automatic cutting, high work efficiency, labor saving, only one person can operate, three axes are all made from Taiwan For the square rails produced by Silver Company, the XY axis adopts domestic well-known high-precision helical rack and pinion, and the Z axis adopts Taiwan native nut TBI lead screw; automatic lubrication system; the machine can automatically complete drilling, engraving, cutting, grooving and other work, It can greatly save labor costs and improve processing efficiency. It is an indispensable helper in the furniture industry.




Parameters

Name Laser Positioning CNC Side Hole Drilling Machine With Dual Spindle
Model ZDS-3000
Motor Power 2.2kw*2
Spindle motor Air-cooled motor
Spindle speed 24000r/min 400hz
Operating Voltage 380V
Total power 3.7kw
Effective travel of workbench 2800mm
Empty line speed 150m/min
Processing speed 105m/min
Air pressure 0.6-0.8Mpa
Board thickness 15-50mm
Drilling depth 0-35mm
Minimum working width 70mm
Feed rate 40mm/min
Dimensions 3400*1350*1290mm
Weight 850kg
Control System Guangzhou Star Control System

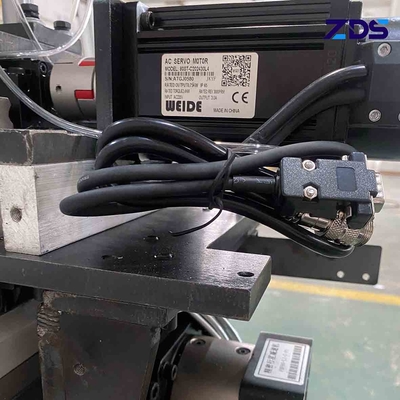

Servo motor Weide XY axis 750W Z axis 750W (with brake)
Laser Probes American Bonner/Senzapat (optional)
Code scanner Optional
Inverter Jintian
Precision guide Taiwan shangyin
Reducer Star Treasure Planetary Reducer
Electrical components Tianzheng Electric
Rack and pinion Xinyu high precision rack
Oil injection lubrication Electric oil injection
Main function Three-in-one hole/dowel hole/blind hole/slotted/mortise and tenon, Lamino invisible connector



1. Touch panel control system: fast data processing speed, stable operation, new man-machine screen, clear interface, fast operation, shortening operation time, and ensuring equipment accuracy.
2. Double spindle motor: 2.2kw air-cooled spindle motor is used, which has strong power and ensures the accuracy and efficiency of drilling.
3. Thickened steel horizontal body: The machine body is made of national standard thickened steel to increase the stability of the whole machine.
4. Pressing cylinder: The movable pressing cylinder can accurately press small plates and special-shaped plates, and effectively avoid inaccurate work caused by plate shaking.
5. High-strength adsorption table: high-strength PVC table is used, which is wear-resistant and durable, avoiding errors caused by table wear.
6. Guide rail: The machine adopts the original guide rail made in Taiwan, which has strong wear resistance and high precision.
7. Lubrication automatic maintenance: electronic automatic oil injection precisely controls the oil injection interval and oil injection amount, and the oil injection numerical control system automatically controls.
8. High-quality transmission towline: use the transmission towline to protect the machine's air pipe, oil pipe and circuit, neat and beautiful




380V 3.7kw Laser CNC Side Hole Drilling Machine With Dual Spindle 0

Panel control system: The domestic excellent control system is adopted, with fast data processing speed, stable operation, simple and easy-to-understand screen, clear interface, fast operation, easy to learn and use, and reduce operation time.



380V 3.7kw Laser CNC Side Hole Drilling Machine With Dual Spindle 1

Thickened steel body: The machine body is made of national standard thickened steel, which increases the stability of the whole machine and improves the accuracy of punching.



380V 3.7kw Laser CNC Side Hole Drilling Machine With Dual Spindle 2

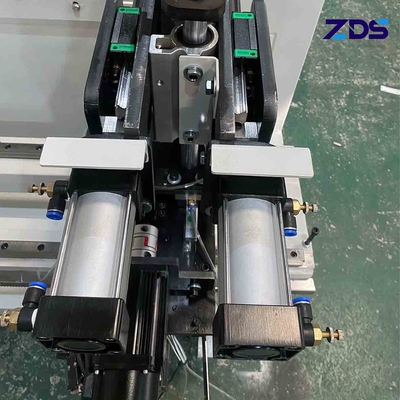

Spindle motor: 2.2kw air-cooled spindle motor with 24,000 rpm and strong power ensures the accuracy and efficiency of drilling.



380V 3.7kw Laser CNC Side Hole Drilling Machine With Dual Spindle 3

Adsorption table: The machine adopts high-strength PVC table to avoid errors caused by table wear, and is more wear-resistant and durable.
