100-120mm Thick CNC Panel Saw Machine Optimization Software Furniture Table Saw

100-120mm Thick CNC Panel Saw Machine Optimization Software Furniture Table Saw
100-120mm Thick CNC Panel Saw Machine Optimization Software Furniture Table Saw 100-120mm Thick CNC Panel Saw Machine Optimization Software Furniture Table Saw

Large Image :  100-120mm Thick CNC Panel Saw Machine Optimization Software Furniture Table Saw

Product Details:
Place of Origin: China
Brand Name: ZDS
Model Number: 330
Payment & Shipping Terms:
Minimum Order Quantity: 1sets
Price: negotiate
Packaging Details: Plastic film winding
Delivery Time: 10-15 work days
Payment Terms: MoneyGram, Western Union, T/T
Supply Ability: 30sets/months

100-120mm Thick CNC Panel Saw Machine Optimization Software Furniture Table Saw

Description
Name: CNC Panel Saw Machine With Optimization Software For Custom Furniture Voltage: 380V/220V Or Customer Made
Power(w): 22kw Condition: New
Warranty: One Year Cnc Or Not: CNC
After-sales Service Provided: Online Support,Video Technical Support Weight: 5800kg
Dimension(l*w*h): 5600*6000mm Application: Woodworking,woodworking Cnc Router,woodworking Machine Cnc,Wood Working,etc
High Light:

120mm Thick CNC Panel Saw Machine

,

100mm Thick CNC Panel Saw Machine

,

Optimization Software Furniture Table Saw

CNC Panel Saw Machine With Optimization Software For Custom Furniture



Features:
1. Automatically detect the cutting length of the board, automatically adjust the sawing time according to the specifications of the cutting board, shorten the running cycle of the machine, and improve the work efficiency.
2. Import processing orders into the system to automatically generate cutting requirements (multiple orders can also be imported for mixed production), and automatically generate cutting documents.
3. The board cutting optimization software automatically optimizes the size of the cutting board, automatically generates a cutting diagram, improves the utilization rate of the board, and automatically imports the optimized data into the machine's control system.
4. Automatically feed the board, automatically locate the cutting size according to the cutting requirements, automatically push out the board after cutting one piece and locate the size of the next board to be cut, which can be continuously cut, and automatically print a barcode for each cut board. Labels are less error-prone.

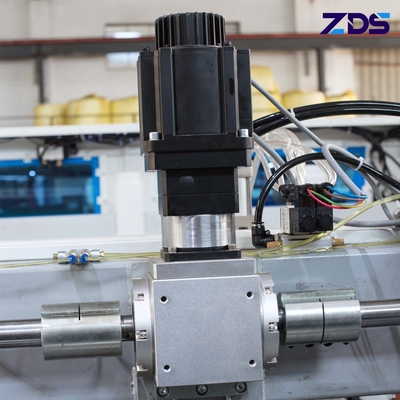

5. The feeding is equipped with the original imported CST planetary reducer, and the grinding-grade rack and pinion performs accurate positioning. There is no need to use the magnetic scale for secondary compensation, and the accuracy is directly guaranteed by the mechanical hardware.
6. The sawing machine runs smoothly on the linear precision guide rail, and automatically advances and retreats for cutting. The guide rail is installed close to the "U" shape of the body, and the straightness is excellent without adjusting the machine. .
7. The thickness of the steel plate on the table top of the whole machine is 25mm thick, and the body weight is 6 tons. It has been annealed at high temperature by a large heat treatment equipment, which is solid and durable, and then finished by a large CNC gantry milling machine to ensure the quality.



Name CNC Panel Saw Machine With Optimization Software For Custom Furniture
Model ZDS-330
Maximum cutting length 3300mm
Maximum cutting thickness 100~120mm
Positioning method Automatic
Positioning accuracy ±0.02mm
Cutting accuracy ±0.15mm
Main saw motor power 15kw
Main saw blade diameter 400~450mm
Main saw shaft diameter 60mm
Main saw speed 3800rpm
Saw car servo motor power 1.5kw
Mechanical hand servo motor 1.5kw
Vice saw motor power 1.5kw
Vice saw blade diameter 180mm
Vice saw shaft diameter 30mm
Vice saw speed 6100rpm
Feeding speed 0~80m/min
Cutting speed 0~80m/min
Return speed 0~120m/min
Air pressure 0.6~0.7mpa
Machine tool dimension 5600*6000mm
Net weight About 5800kg
Total power 22kw

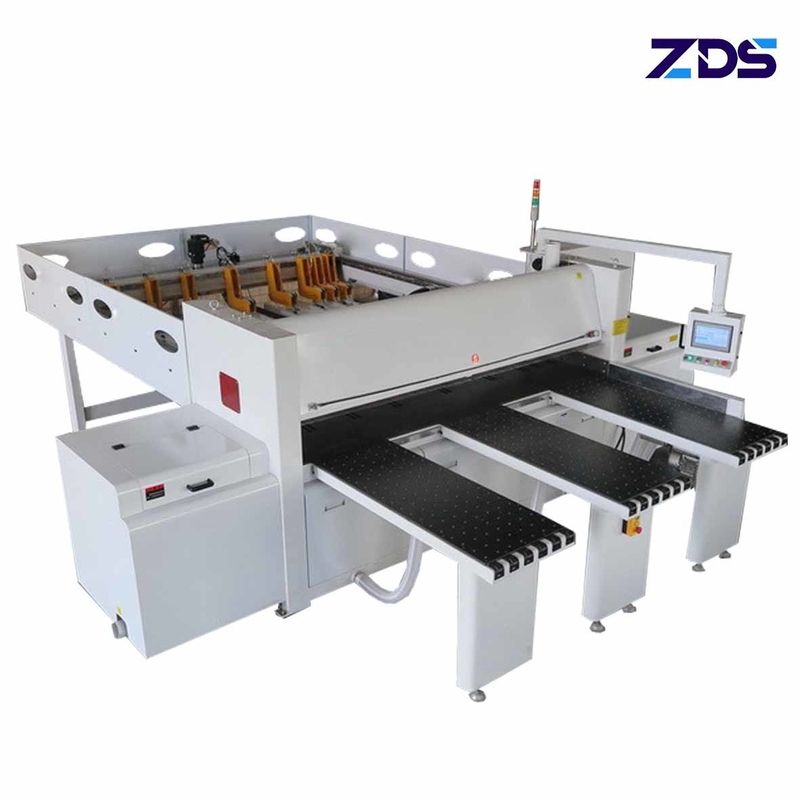

100-120mm Thick CNC Panel Saw Machine Optimization Software Furniture Table Saw 0

100-120mm Thick CNC Panel Saw Machine Optimization Software Furniture Table Saw 1

100-120mm Thick CNC Panel Saw Machine Optimization Software Furniture Table Saw 2
