Four Head Hinge Hole Drilling Machine

Four Head Hinge Hole Drilling Machine
Four Head Hinge Hole Drilling Machine Four Head Hinge Hole Drilling Machine Four Head Hinge Hole Drilling Machine Four Head Hinge Hole Drilling Machine

Large Image :  Four Head Hinge Hole Drilling Machine

Product Details:
Place of Origin: China
Brand Name: ZDS
Model Number: 73034
Payment & Shipping Terms:
Minimum Order Quantity: 1sets
Price: negotiate
Packaging Details: Plastic film winding
Delivery Time: 5-8 work days
Payment Terms: MoneyGram, Western Union, T/T
Supply Ability: 100sets/months

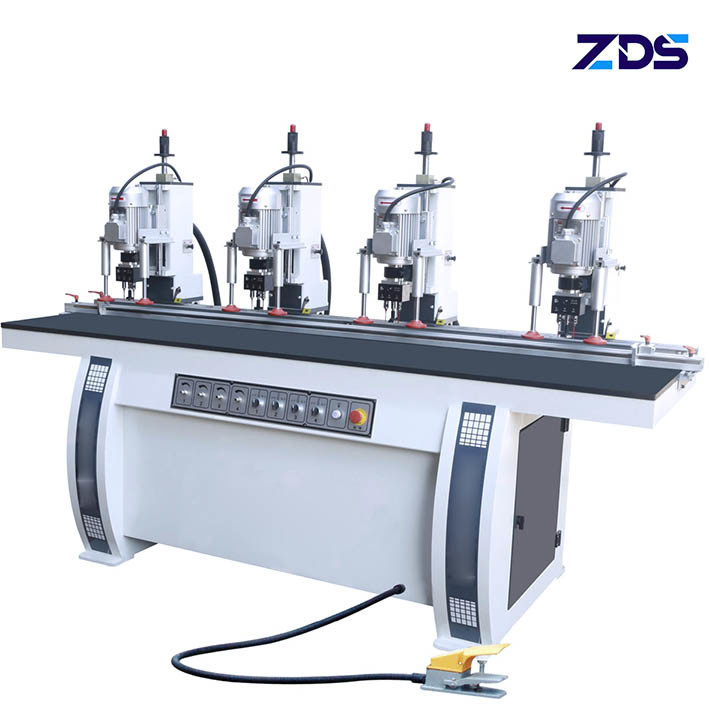

Four Head Hinge Hole Drilling Machine

Description
Product Name: Four-head Hinged Drilling Machine Cnc Or Not: Normal
After-sales Service Provided: Video Technical Support Power(w): 1.1kw*4
Weight: 800kg Dimension(l*w*h): 2550*800*1550mm
Drilling Speed: 2840rpm Warranty: One Year
High Light:

Four Head Hinge hole Drilling Machine

,

ZDS Panel Furniture Drilling Machine

,

Wardrobe Doors Hinge Drilling Machine

Four-Head Hinged hole Drilling Machine For Panel Furniture And Wardrobe Doors



The four-head hinge hole drilling machine can complete the four drilling holes in the vertical direction at one time or separately in sequence. The positioning is accurate, and the distance between the holes is adjustable, which can adapt to the drilling needs of different workpieces.
The machine is beautiful, novel in design, advanced in technology, high in production accuracy, convenient and flexible in operation, stable and reliable in operation, and high in work efficiency.
It is mainly used for hinge drilling of furniture door panels, such as wardrobe door panels, cabinet doors, office furniture door panels, etc. It is the first choice for the production of solid wood furniture and panel furniture.




Product parameters



Name Four head hinge hole drilling machine
Mode ZDS-73034
Maximum drilling diameter φ35mm
Maximum drilling depth 50mm
Maximum processing length 2300mm
Minimum processing length 180mm
Drill chuck aperture 3*4
Spindle speed 2840r/min
Air pressure 0.6-0.8Mpa
Voltage 380v
The motor power 1.1kw*4
Warranty period 1 Year
Application MDF, partical/abs/artficial board
After-sales service provided Online support
Produce name Woodworking hinge drill, Cabinet door hinge drill
Overall dimensions 2550*800*1550mm
Weight 800kg




Four Head Hinge Hole Drilling Machine 0

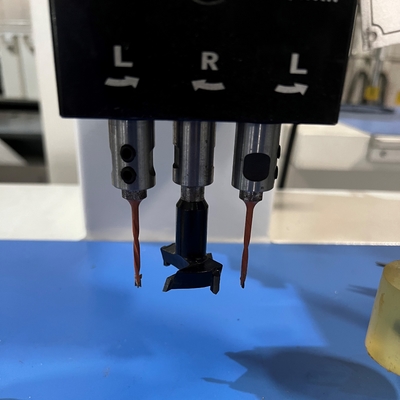

Pure copper motor, fast heat dissipation, high power, with precision guide rail, precise control of drilling depth



Four Head Hinge Hole Drilling Machine 1

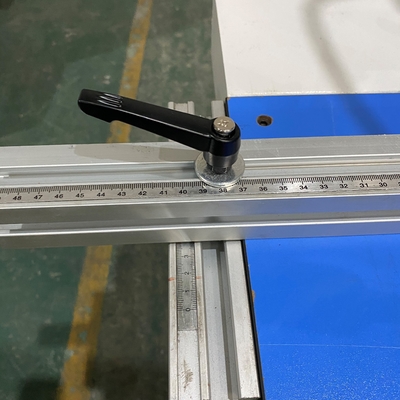

Round rod precision guide, good stability


Applicable scope

Four Head Hinge Hole Drilling Machine 2Four Head Hinge Hole Drilling Machine 3Four Head Hinge Hole Drilling Machine 4

  Eco board                                                  MDF                                             solid wood board

Four Head Hinge Hole Drilling Machine 5Four Head Hinge Hole Drilling Machine 6Four Head Hinge Hole Drilling Machine 7

 Wood-based panels                             particle board                                               Multilayer board
