| Name: | Foldable Wood Saw Cutter Sliding Table Saw With Mobile Receiving Rack | Power(w): | 5.4KW |
|---|---|---|---|
| Voltage: | 220v/380v/415v/440v | Dimension(l*w*h): | 1530*1800*770mm |
| Tilting Saw Blade: | 0-45° | Weight: | 90kg |
| Warranty: | 1 Year | Usage: | Woodworking,Wood Cutting,table Saw,Wood Working,cut Wood |
| Condition: | New | Type: | Table Panel Saw,Sliding Table Saw,circular Saw,wood Saw Cutter |
| Application: | Woodworking,Panels Wood Cutting Machine,Wood Saw,furniture Production | ||
| High Light: | Foldable Wood Saw Cutter,Sliding Table Saw 5.4KW,440v Sliding Table Saw |
||

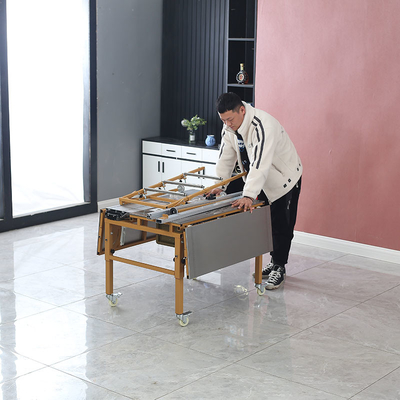

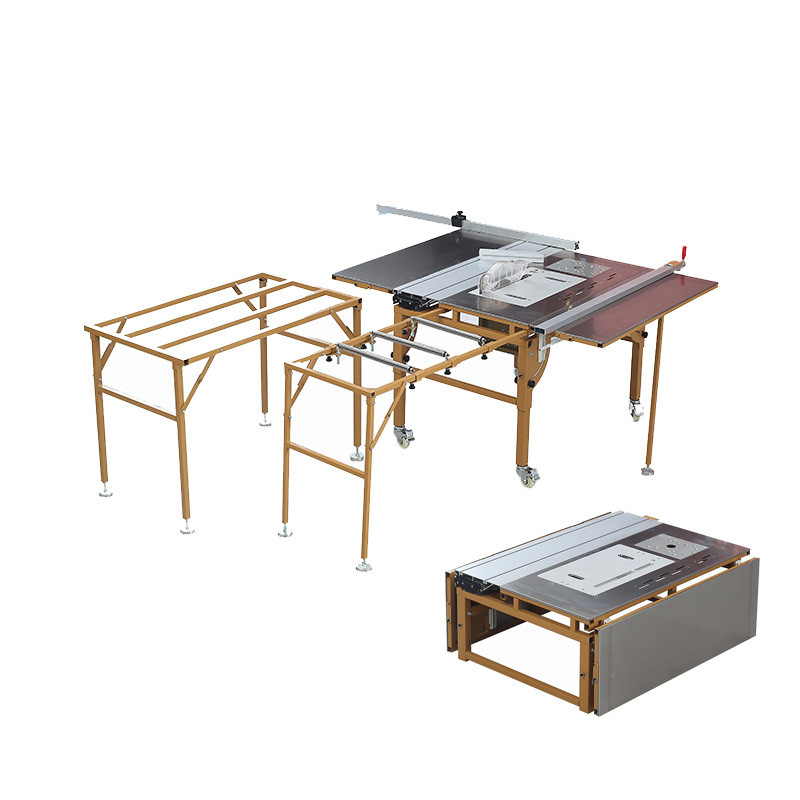

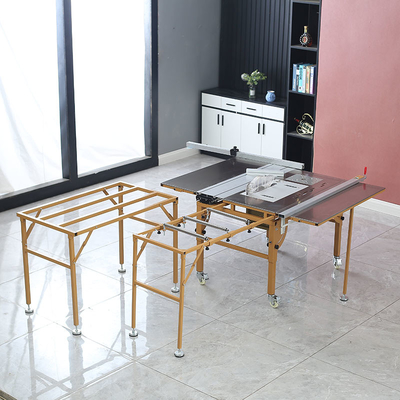

Foldable Wood Saw Cutter Sliding Table Saw With Mobile Receiving Rack
Foldable Wood Saw Cutter Sliding Table Saw Features
1. 250 * 100mm linear precision guide rail
2. Quick positioning of vertical support
3. Extendable roller feeding rack
4. Movable material receiving platform
5. Bilateral foldable
| name | Foldable Wood Saw Cutter Sliding Table Saw |
| model | 360 |
| table size | 1530*1800*770mm |
| folding dimension | 1000*920*400mm |
| expanded size | 1530*1800*770mm |
| guide rail size | 250*100*1000mm |
| Type of rail | Aluminum alloy widening and thickening linear precision guide |
| machine weight | 90kg |
| flip plate | 50*30cm |
| Packaging size | 113*78*50cm |
| Name | Manually lift dust-free saw | Manual lift brushless saw | Electric lift dust-free saw | Electric Lift Brushless Saw | |
| Model | ZDS10 | ZDS11 | ZDS20 | ZDS21 | |
| Working voltage | 220v/50Hz | 220v/50Hz | 220v/50Hz | 220v/50Hz | |
| Big saw power | 2600w | 1600w | 2600w | 1600w | |
| Small saw power | 1600w | 550w | 1600w | 550w | |
| Big saw speed | 4500r/min | 4500r/min | 4500r/min | 4500r/min | |
| Small saw speed | 13000r/min | 5500r/min | 13000r/min | 5500r/min | |
| Vacuuming power | 1200w | 1200w | 1200w | 1200w | |
| Overall size | 50*30*35cm | 50*30*35cm | 50*30*35cm | 50*30*35cm | |
| Weight | 23kg | 23g | 26kg | 26kg | |
| Saw blade size | Big saw | 8/9inch | 8/9inch | 8/9inch | 8/9inch |
| Small saw | 4inch | 5inch | 4inch | 5inch | |
| Lifting height method | Big saw | Manually | Manually | Electric | Electric |
| Small saw | Manually | Manually | Manually | Manually | |
| Motor | Hanchuan Copper core motor | Custom Brushless Motors | Hanchuan Copper core motor | Custom Brushless Motors | |
