Six Sides Woodworking CNC Machine Automatic Drilling With Double Drill

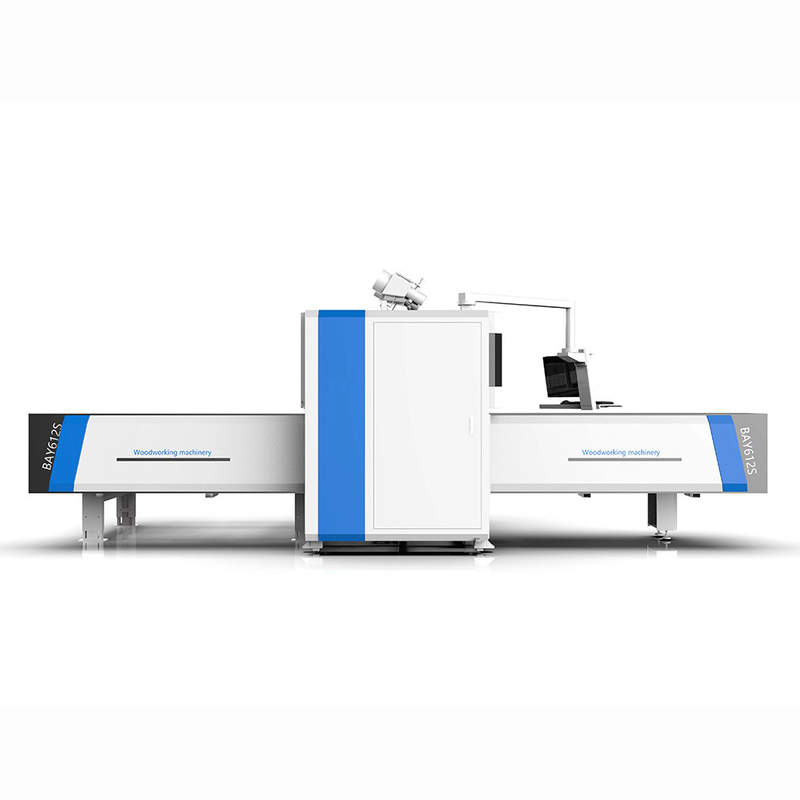

Large Image : Six Sides Woodworking CNC Machine Automatic Drilling With Double Drill

Product Details:

Place of Origin:	China
Brand Name:	ZDS
Model Number:	612S

Payment & Shipping Terms:

Minimum Order Quantity:	1sets
Price:	negotiate
Packaging Details:	Carton packing
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100sets/months

Contact Now

Detailed Product Description

Name:	Woodworking CNC Machine Automatic Six Sides Cnc Drilling Machine With Double Drill	Voltage:	380V Or Customer Made
Power(w):	19.2KW	Condition:	New
Warranty:	12 Months	Cnc Or Not:	CNC
Weight:	3500KG	Spindle:	3.5kw Air Cooling Spindle
Spindle Speed:	18000RPM	Application:	Woodworking Cnc Router,woodworking Machine Cnc,Wood Working
High Light:	Six Sides Woodworking CNC Machine , Woodworking CNC Drilling Machine , 3500KG Woodworking CNC Drilling Machine

Woodworking CNC Machine Automatic Six Sides Cnc Drilling Machine With Double Drill

Woodworking CNC Machine Automatic Six Sides Cnc Drilling Machine With Double Drill

1 Screw drive, higher precision, the error is within 0.05-0.1mm, and the cumulative tolerance is within ±0.2mm.

2 Automatically detect the length of the plate to prevent misalignment.

3 Depending on the needs of your site, choose front or rear discharge.

4 The unique clamping device can reduce the minimum range of the processed plate to within 10mm.

5 Taiwan LNC control system can realize remote update of database.

6 Through HHM software control and online production with other equipment, unmanned intelligent production can be realized.


			Processing Size Range
			Maximum width
			1200mm

			Minimum width
			50mm

			Maximum length
			5000mm

			Minimum length
			120mm

			Maximum thickness
			48mm

			Working Stoke & Max.Position Speed
			X axis
			5000mm & 130m/min

			Y axis
			1680mm & 55m/min

			Z axis
			90mm & 30m/min

			U axis
			5000mm & 130m/min

			V axis
			1200mm & 80m/min

			W axis
			100mm & 30m/min

			A axis
			1260mm & 30m/min

			TOP Drilling unit:
			Vertical spindles
			12pcs

			Horizontal Spindle
			8pcs

			Drilling box motor speed
			3400rmp

			Router Motor power
			3.5kw speed18000rpm

			Bottom Drilling unit:
			Vertical spindles
			9pcs

			Horizontal Spindle
			0pcs

			Drilling box motor speed
			3400rmp

			Router Motor power
			3.5kw speed 18000rpm

			Other Data:
			Working table height
			960mm

			Total Power
			19.2kw

			Voltage
			380V/50Hz

			Working air pressure
			0.6-0.8Mpa

			Weight
			3500kg

			Overall size
			5800*2840*2200mm

Six Sides Woodworking CNC Machine Automatic Drilling With Double Drill 0

Inovance private server motor, control gripper, fast and precise positioning, up to 130m/min.

Six Sides Woodworking CNC Machine Automatic Drilling With Double Drill 1

Taiwan HIWIN Ball Screw Drive, the screw drive error is within 0.05-0.1MM, the cumulative error is within ±0.2MM, and the service life of the whole machine is improved.

Six Sides Woodworking CNC Machine Automatic Drilling With Double Drill 2

Precision guide rails produced in Taiwan, dust-proof design, smooth operation.

Six Sides Woodworking CNC Machine Automatic Drilling With Double Drill 3

High stability body structure design, CNC five-axis machining frame, after heat treatment, reduce stress, increase stability and service life.
